-17%

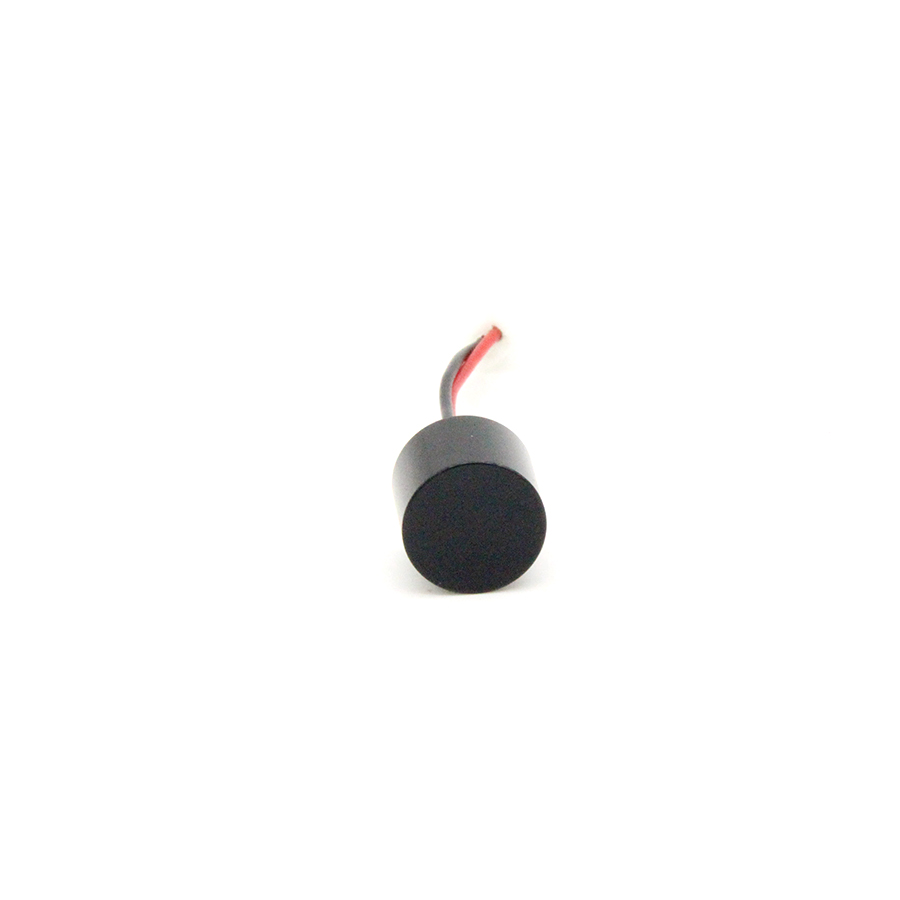

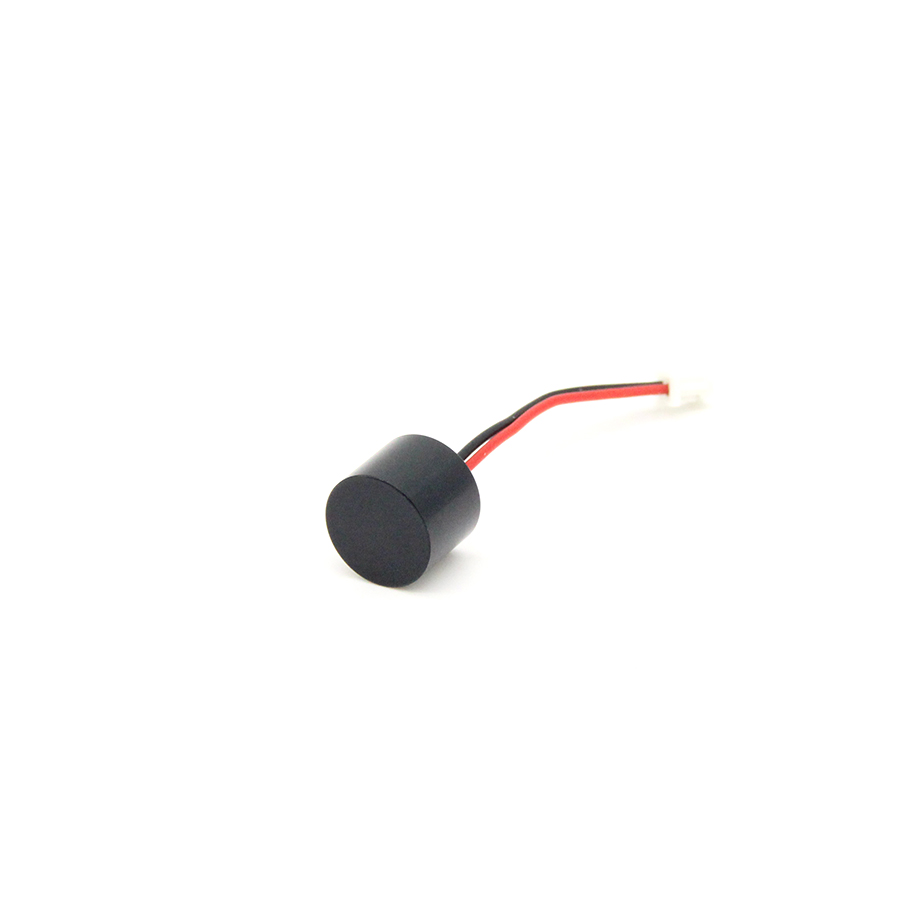

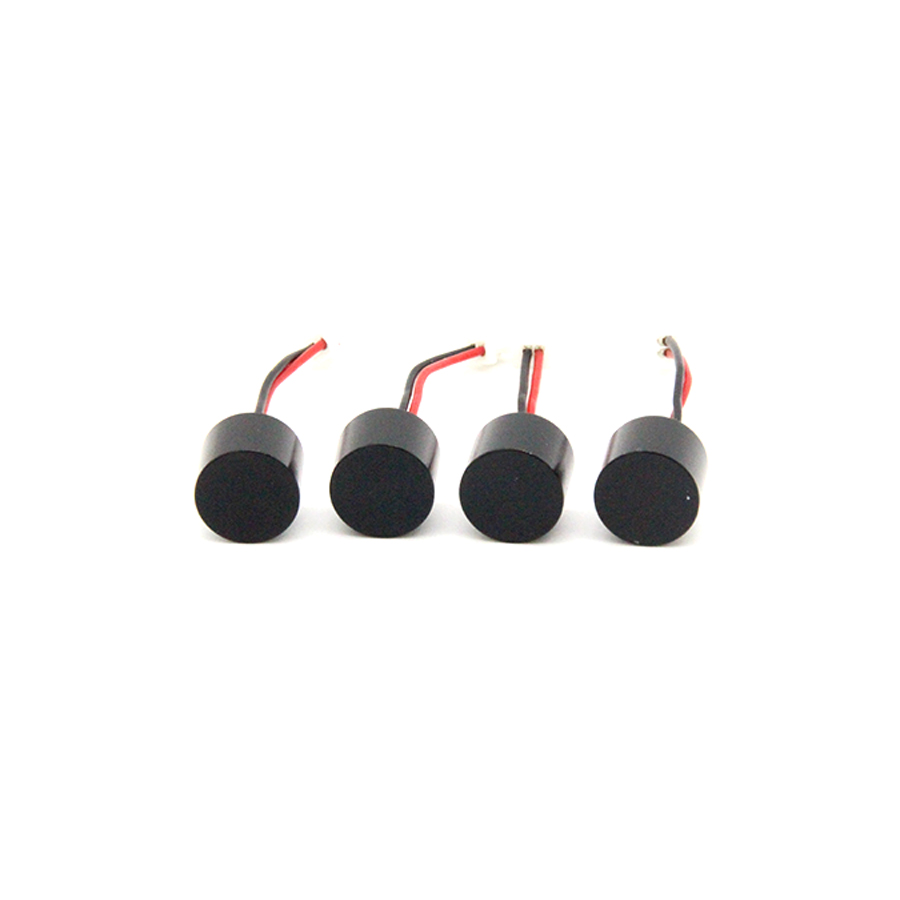

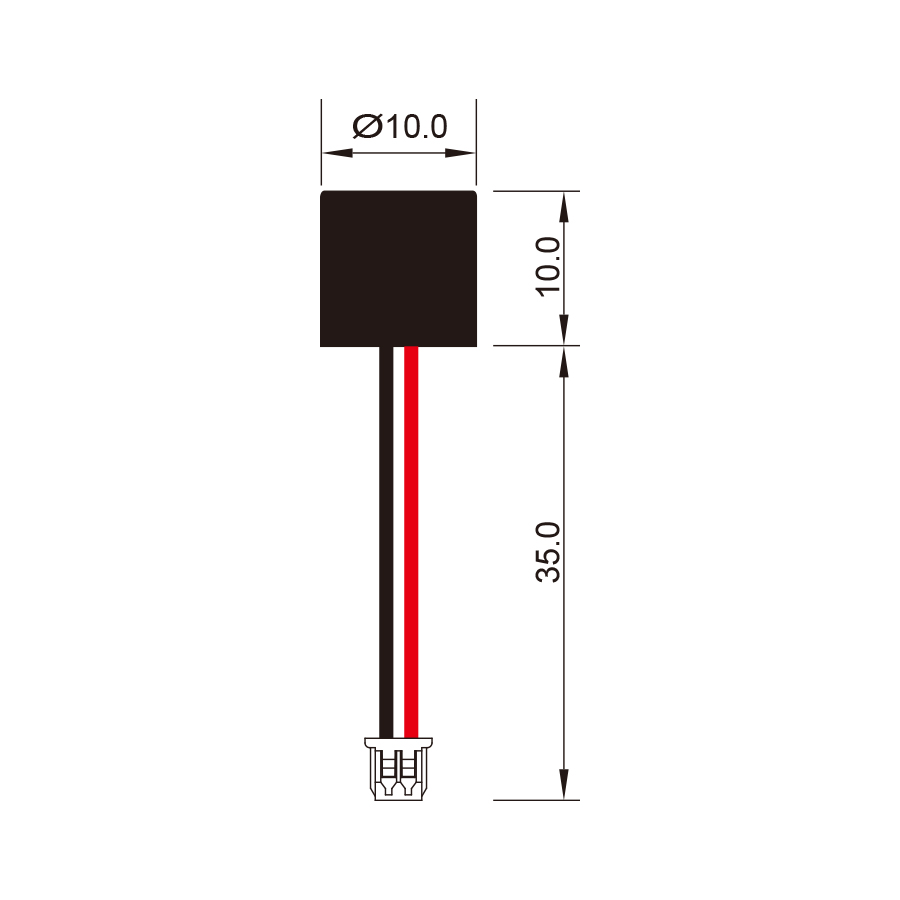

10mm Size Ultrasonic Sensor for Anemometer
Original price was: $3.00.$2.50Current price is: $2.50.
| Item NO.: | WF40K-M10 |
| Operating Frequency: | 40kHz ± 2% |
| Transmitting S.P.L.: | 96 dB Min.(0dB = 20uBar, 10Vp-p, 30cm, 40kHz) |
| Receiving Sensitivity: | -85 dB Min.(0dB = 20uBar, 10Vp-p, 30cm, 40kHz) |
| Capacitance at 1 kHz: | 1900 pF ± 20% |
| Ringing Time: | 1.2ms Max. |
| Typical Sensing Range: | 30 to 500cm |
| Directivity: | 90° ± 5% |
| Max.Driving Voltage: | 120 Vp-p.(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40℃ to 90℃ |
| Weight: | 1.5 g |
| Housing Material: | Aluminum |
| Color: | Black |
50000 in stock
CompareDescription
| Item NO.: | WF40K-M10 |
| Operating Frequency: | 40kHz ± 2% |
| Transmitting S.P.L.: | 96 dB Min.(0dB = 20uBar, 10Vp-p, 30cm, 40kHz) |
| Receiving Sensitivity: | -85 dB Min.(0dB = 20uBar, 10Vp-p, 30cm, 40kHz) |
| Capacitance at 1 kHz: | 1900 pF ± 20% |
| Ringing Time: | 1.2ms Max. |
| Typical Sensing Range: | 30 to 500cm |
| Directivity: | 90° ± 5% |
| Max.Driving Voltage: | 120 Vp-p.(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40℃ to 90℃ |
| Weight: | 1.5 g |
| Housing Material: | Aluminum |
| Color: | Black |
