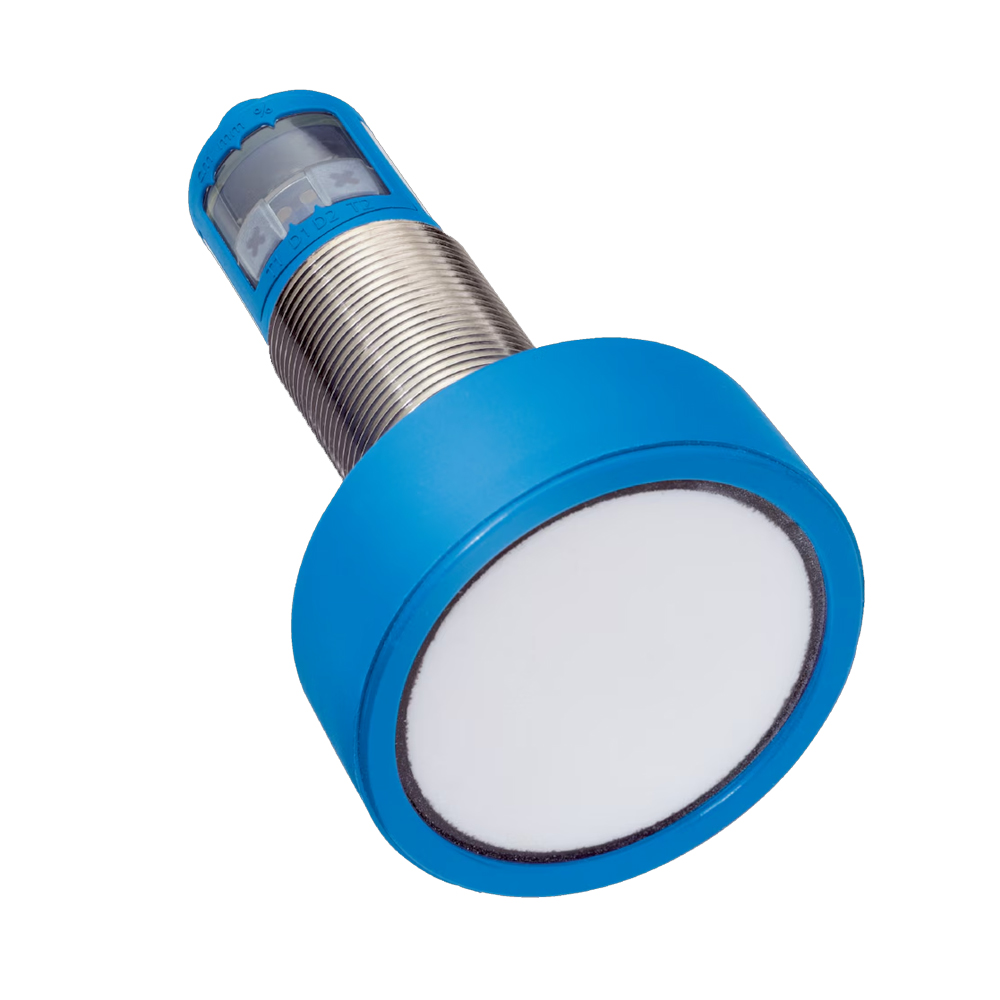

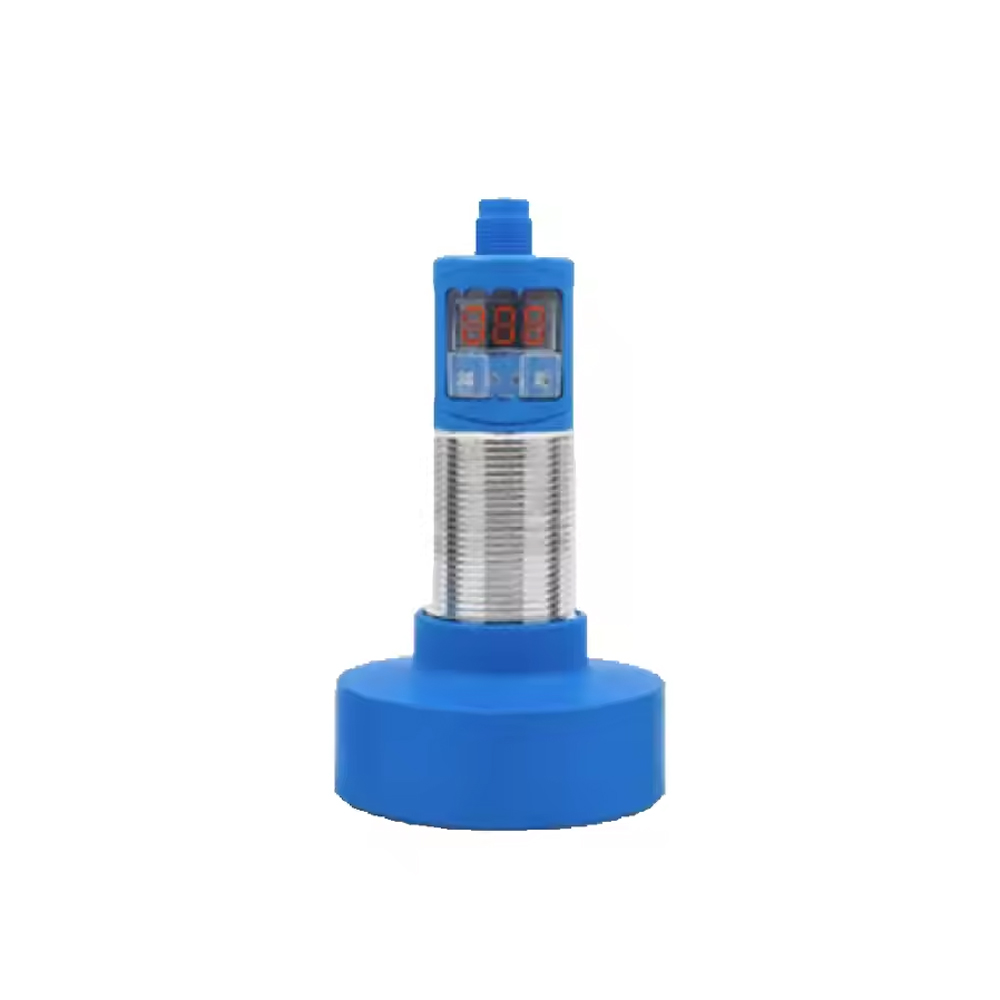

Digital Display Type 6000mm Range M30 Ultrasonic Sensor

Original price was: $250.00.Current price is: $220.00.

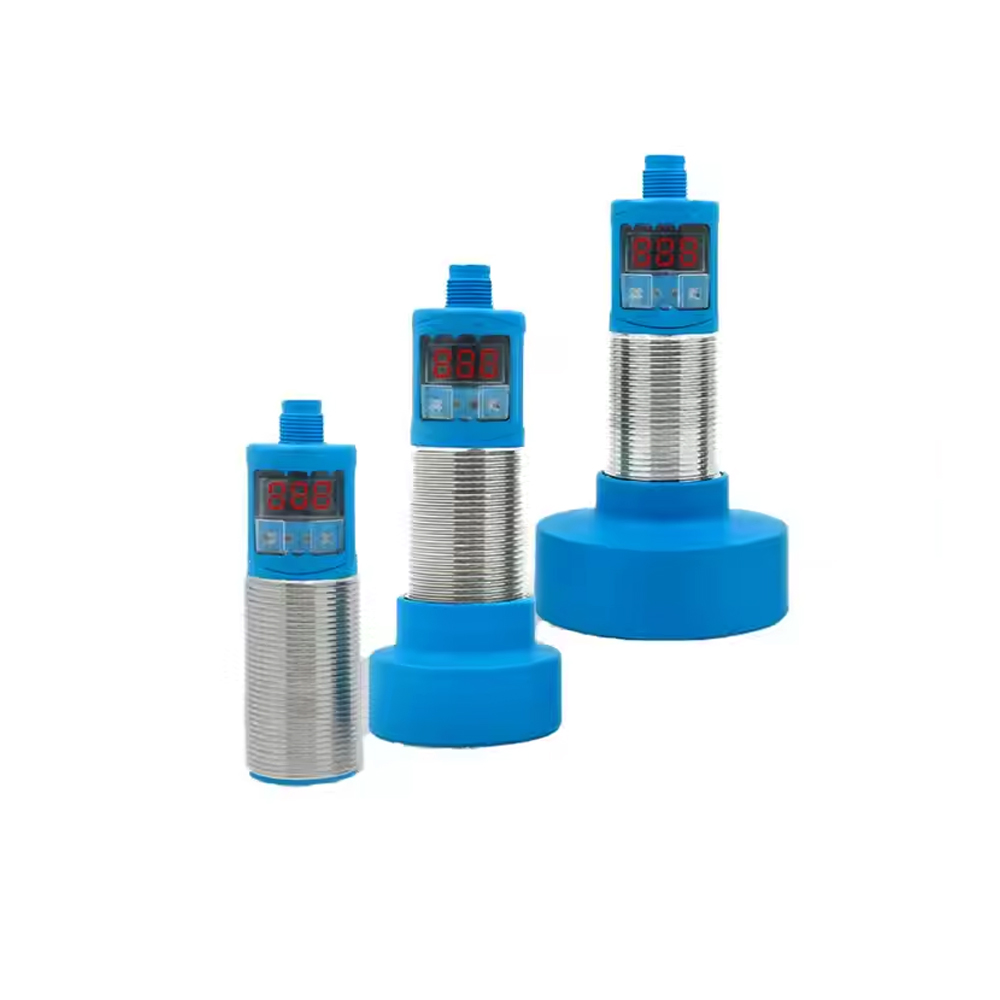

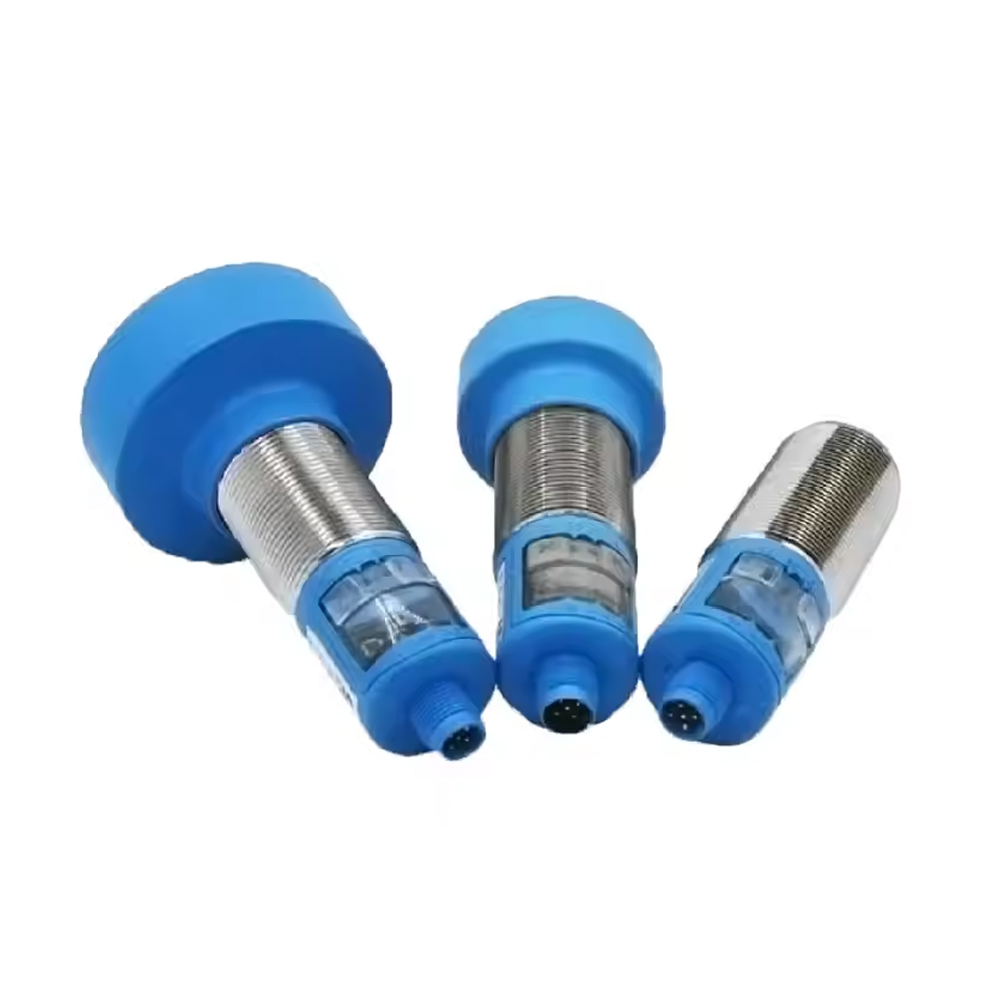

Digital Display Type Ultrasonic Sensor

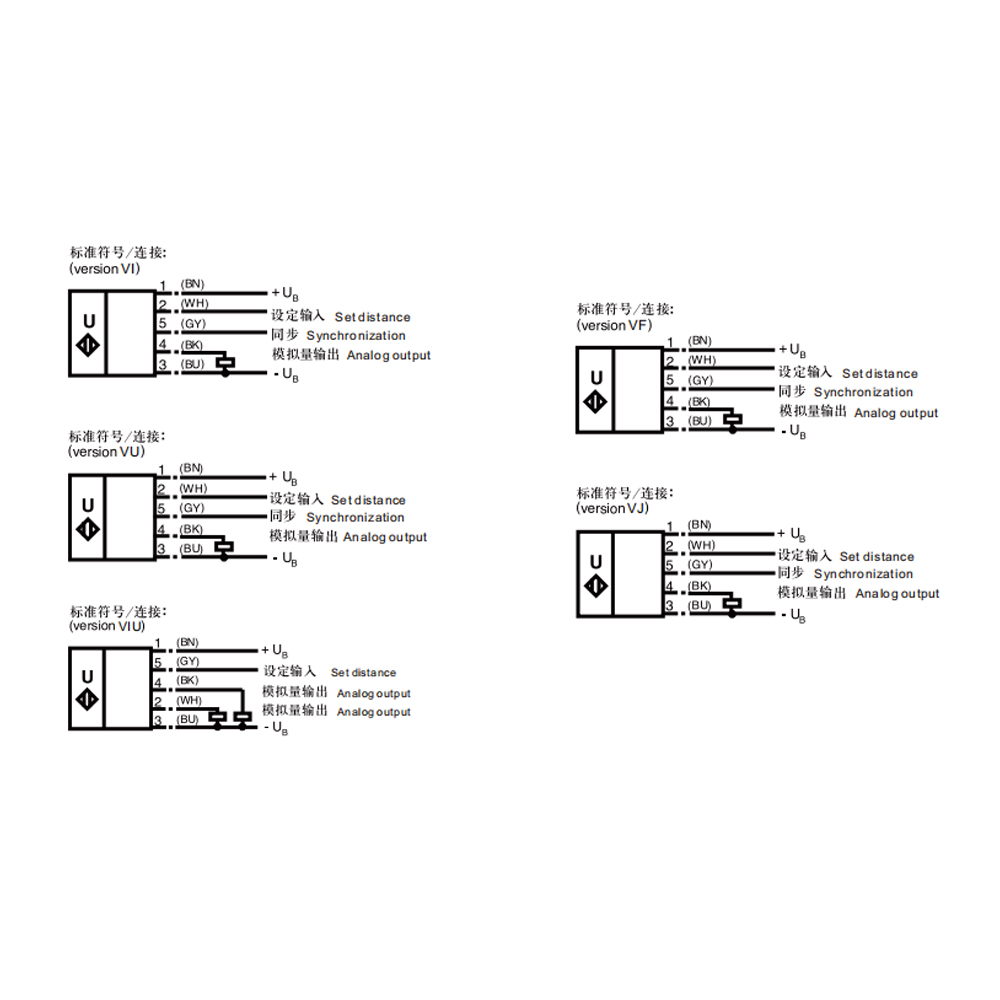

DBX6000-GM30-VU	1 analog output (0~10V)
DBX6000-GM30-VI	1 analog output (4~20mA)
DBX6000-GM30-VF	1 analog output (0~20mA)
DBX6000-GM30-VJ	1 analog output (0~5V)
DBX6000-GM30-VIU	2 analog output (4~20mA + 0~10V)
DBX6000-GM30-VI4	NPN + 4…20mA
DBX6000-GM30-VI5	PNP + 4…20mA
DBX6000-GM30-VU4	NPN + 0-10V
DBX6000-GM30-VU5	PNP + 0-10V

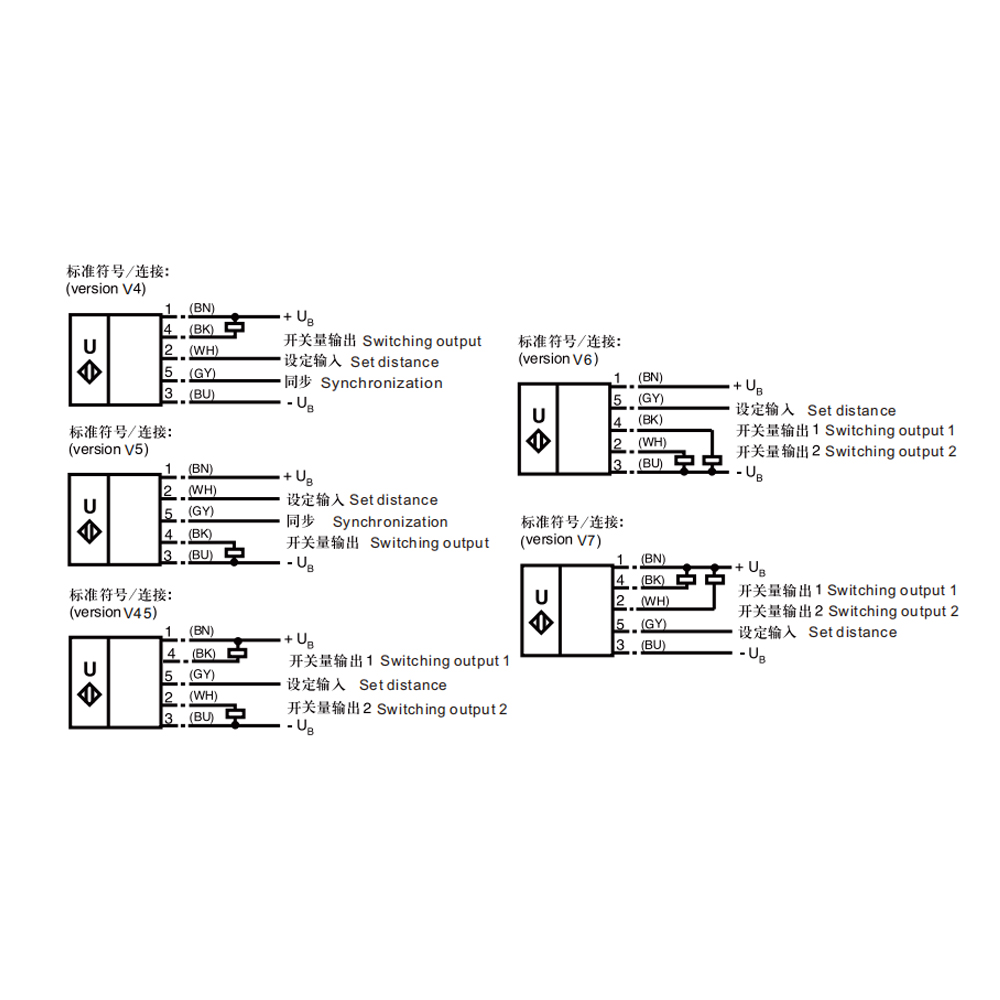

DBX6000-GM30-V4	NPN NO/NC
DBX6000-GM30-V5	PNP NO/NC
DBX6000-GM30-V6	2×PNP NO/NC
DBX6000-GM30-V7	2×NPN NO/NC
DBX6000-GM30-V45	NPN+PNP NO/NC

100 in stock

Digital Display Type Ultrasonic Sensor
DBX6000-GM30-VU	1 analog output (0~10V)
DBX6000-GM30-VI	1 analog output (4~20mA)
DBX6000-GM30-VF	1 analog output (0~20mA)
DBX6000-GM30-VJ	1 analog output (0~5V)
DBX6000-GM30-VIU	2 analog output (4~20mA + 0~10V)
DBX6000-GM30-VI4	NPN + 4…20mA
DBX6000-GM30-VI5	PNP + 4…20mA
DBX6000-GM30-VU4	NPN + 0-10V
DBX6000-GM30-VU5	PNP + 0-10V
DBX6000-GM30-V4	NPN NO/NC
DBX6000-GM30-V5	PNP NO/NC
DBX6000-GM30-V6	2×PNP NO/NC
DBX6000-GM30-V7	2×NPN NO/NC
DBX6000-GM30-V45	NPN+PNP NO/NC
Detection range	400…6000mm
Dead band	0…400mm
Transducer frequency	Approx.75KHz
Response time	Approx.650mS
Rated operating current	<100mA
Supply voltage	10-30VDC ripple 10%. ( 0~10V type Need 15-30VDC)
Repetitive accuracy	±0.1% of full-scale value
Range adjustment	Farthest and closest range can be adjusted by pushing button
Protetion level	IP65
Connection type	H4 (4-pin) M12 connecting wire/2m PVC cable
LED green light	Solid: Power on Flashing: The target is detected in the set state
LED yellow light	Solid: Switch status output Flashing: Setting
LED red light	Working Status: Error Setting Status: No target detected
