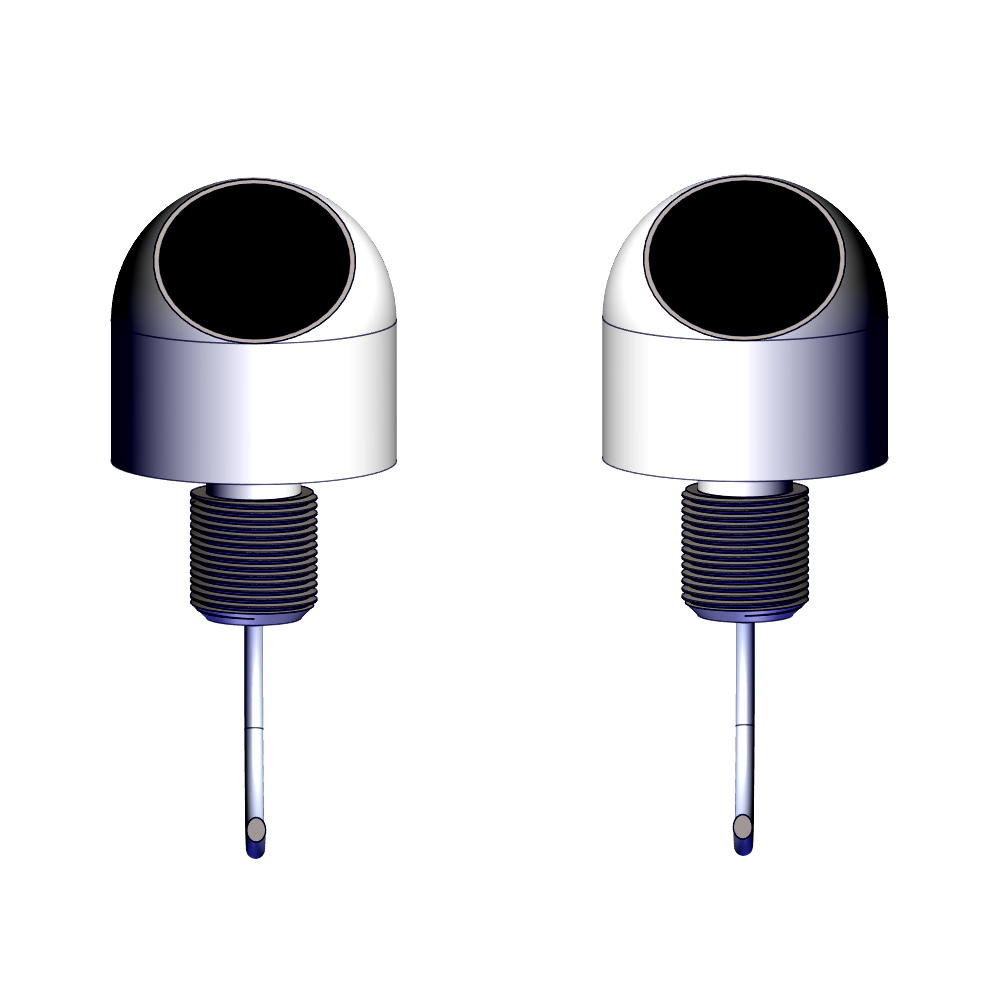

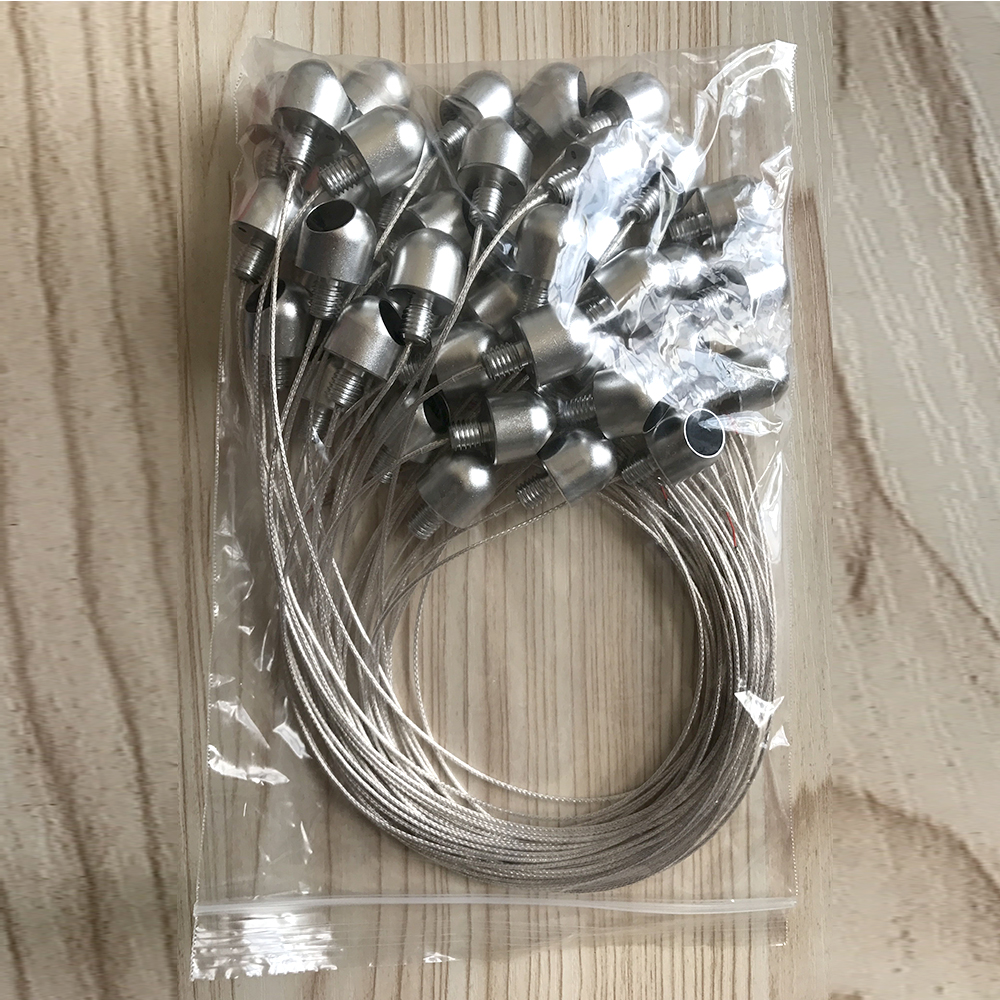

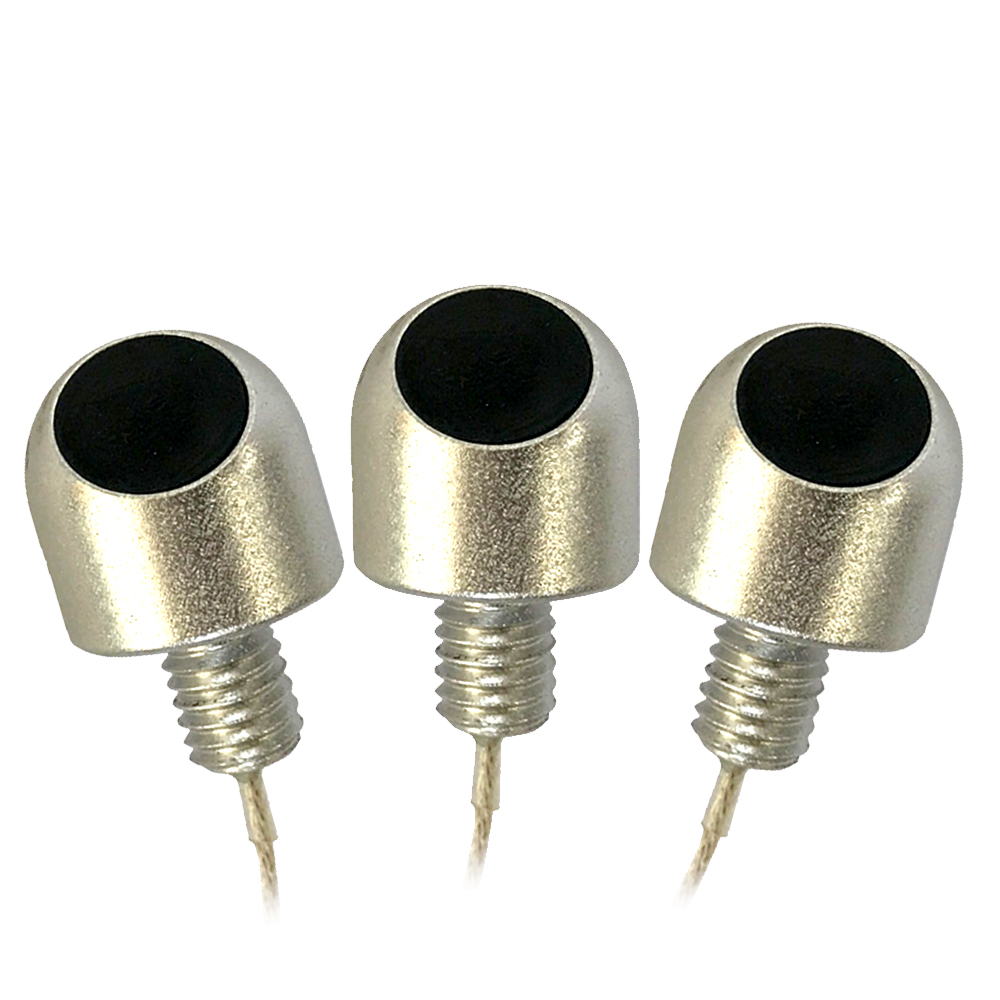

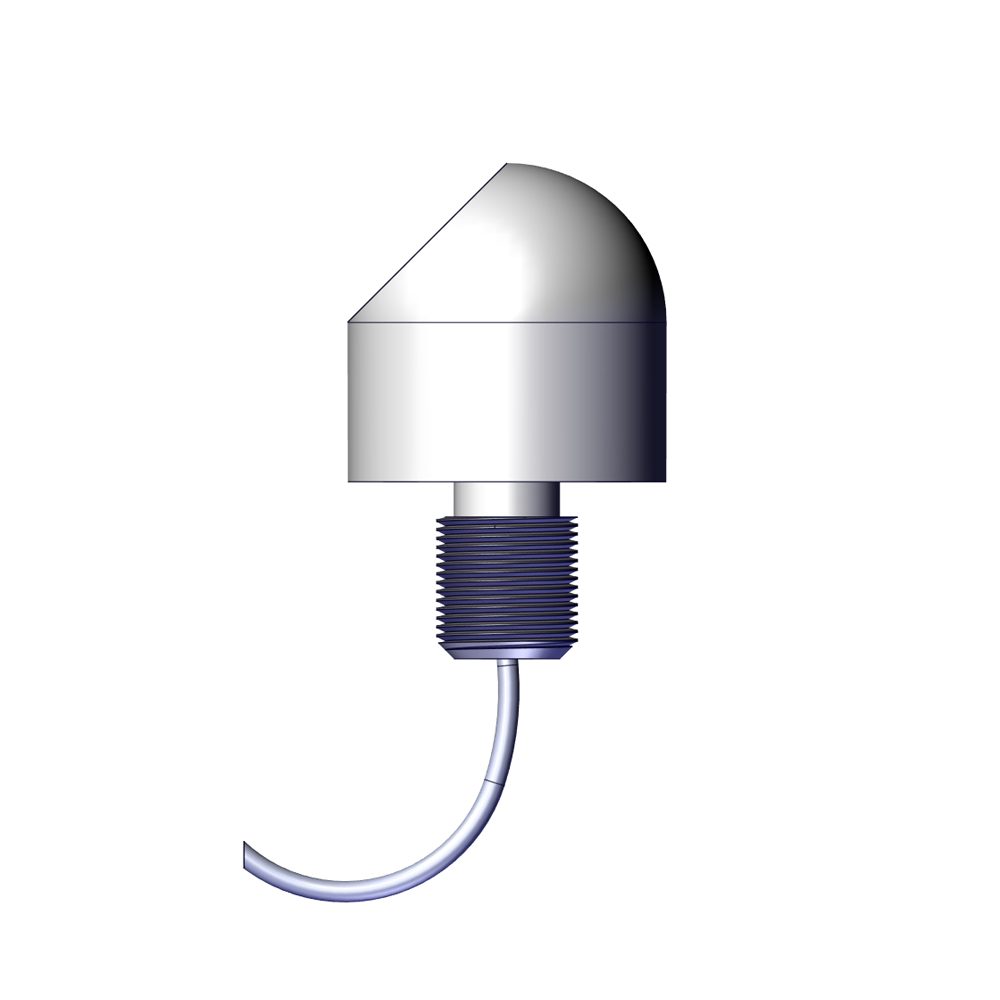

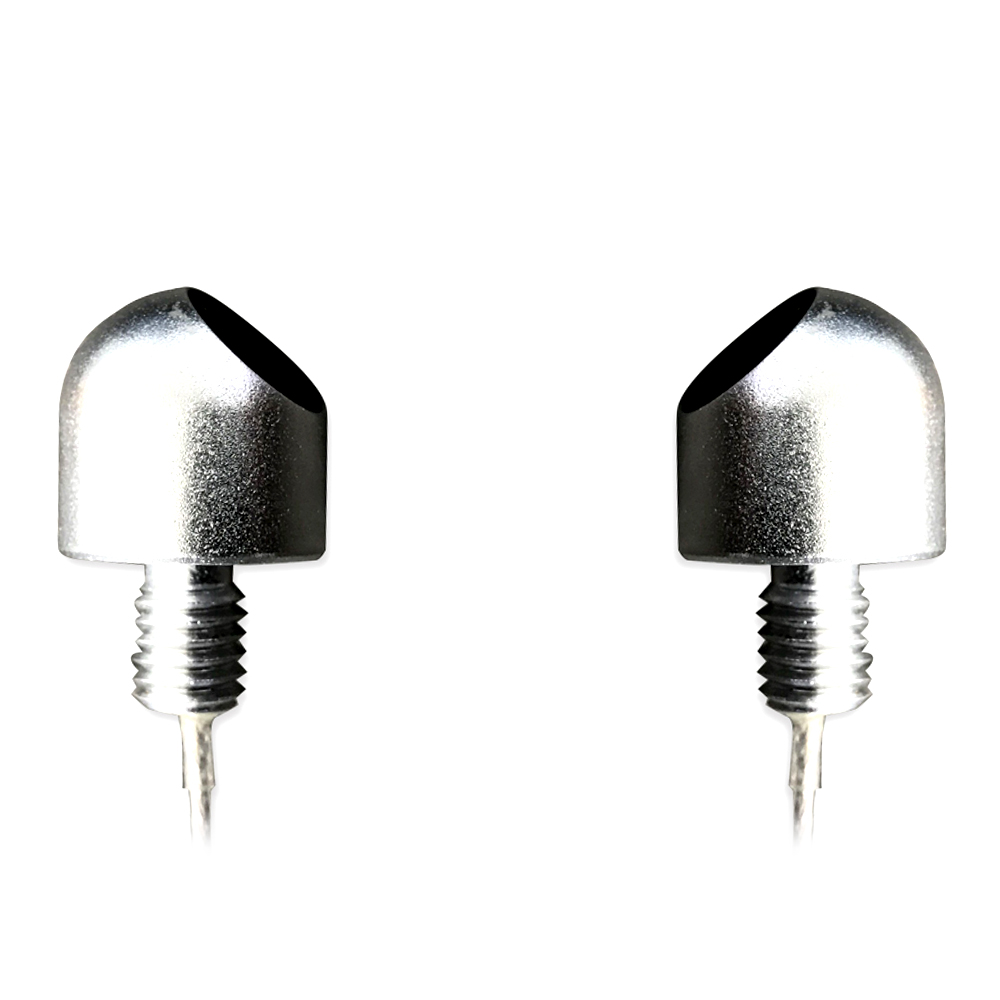

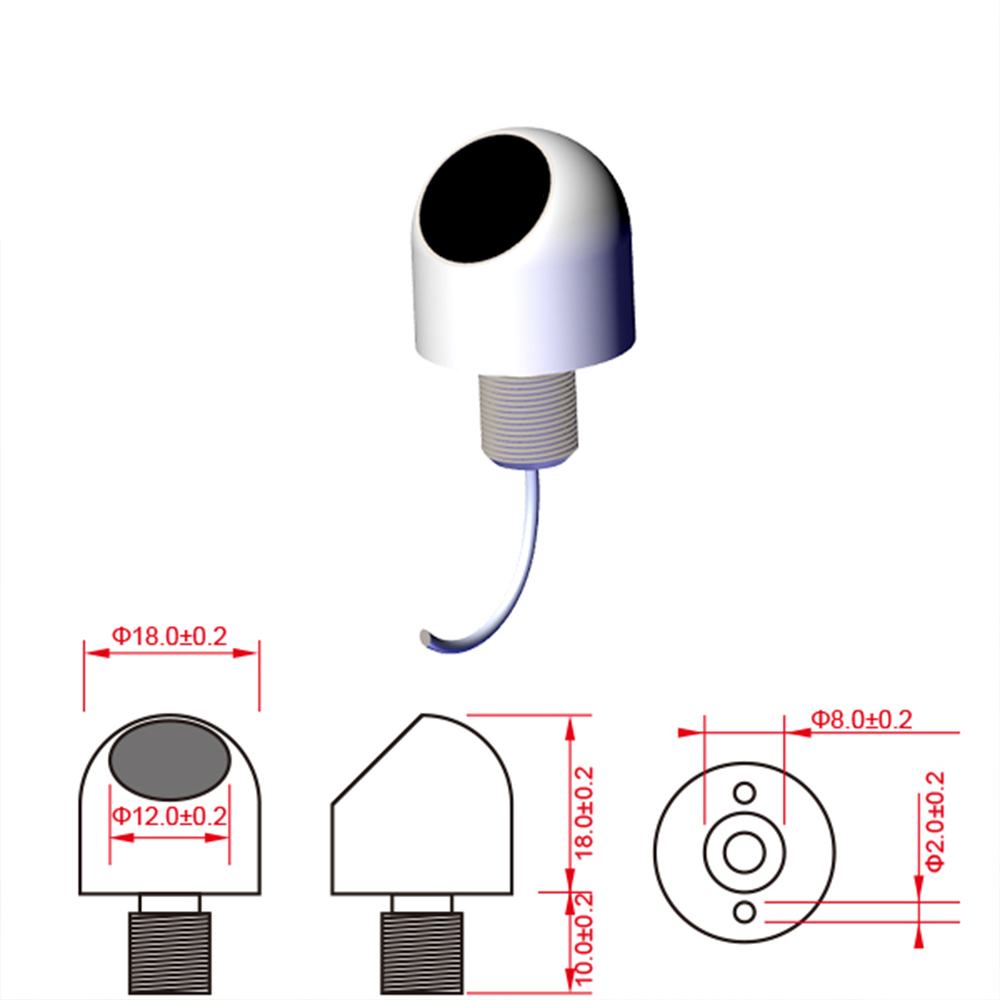

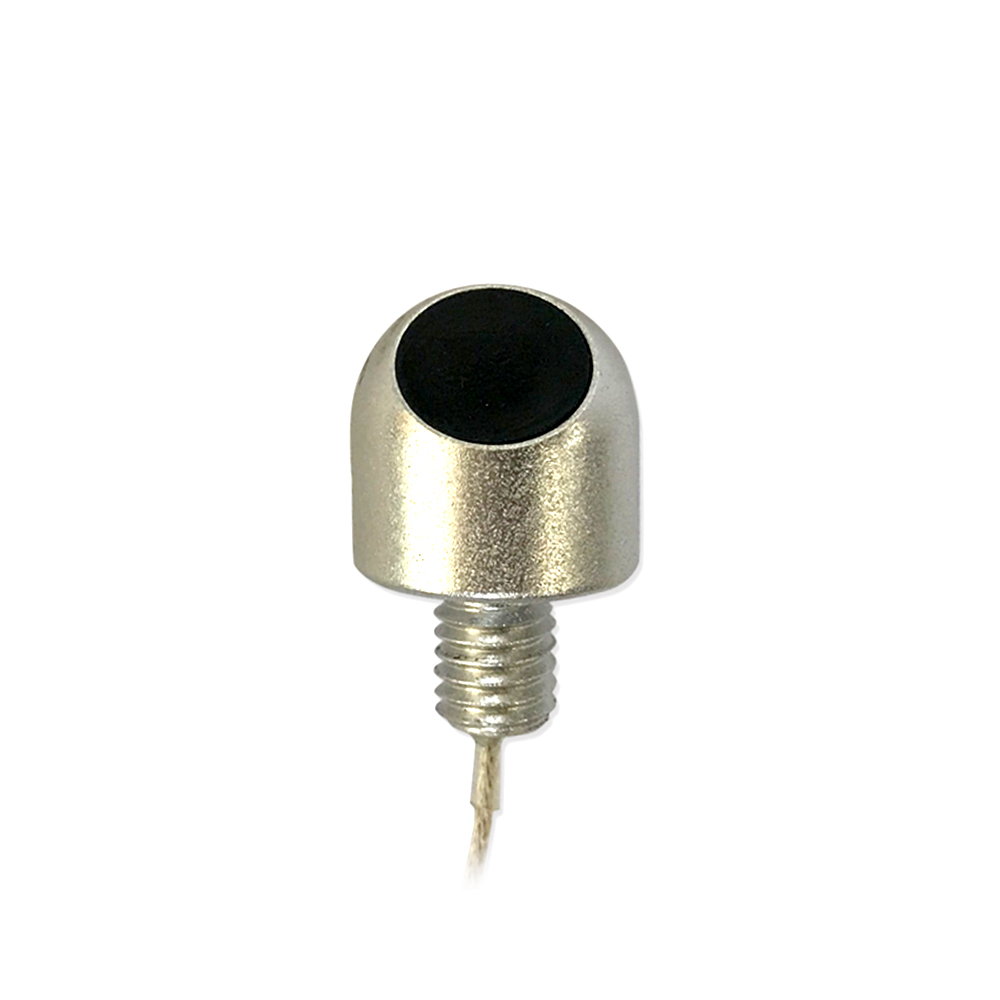

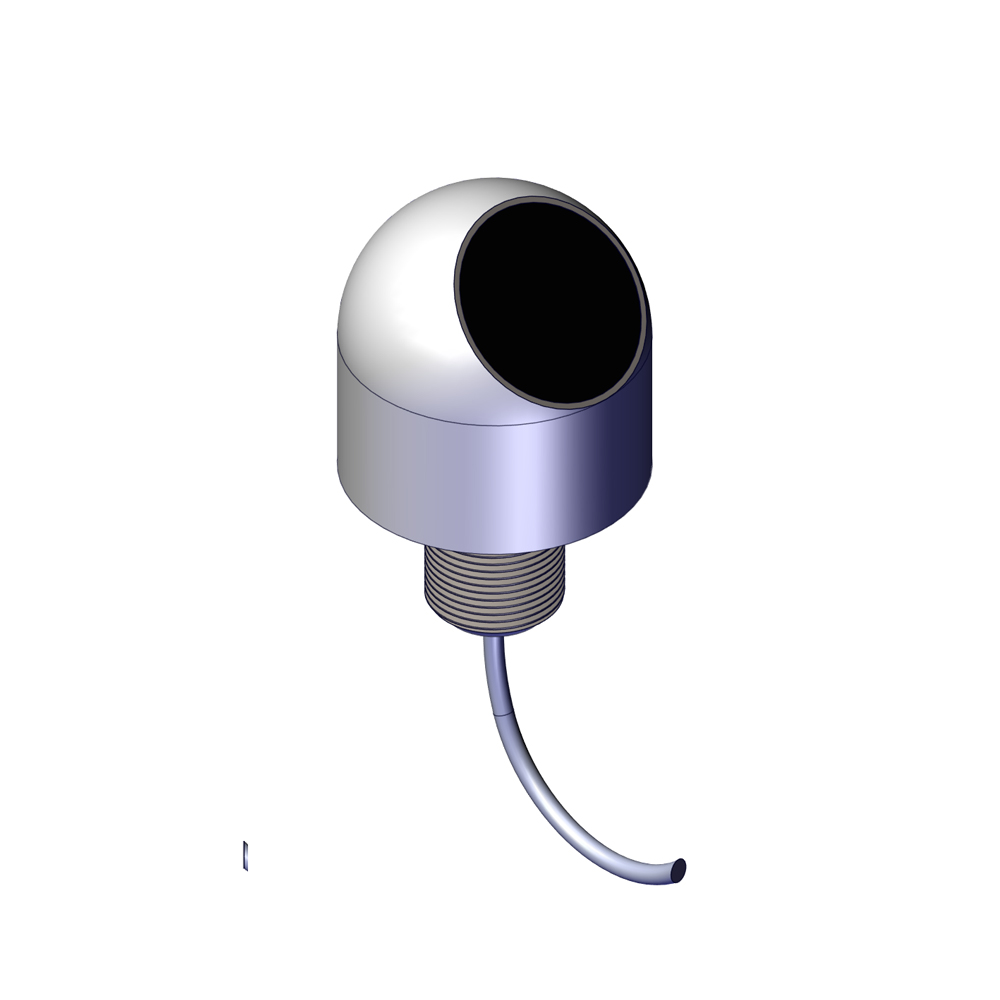

Half Ball Type 200kHz Ultrasonic Sensor For Anemometer
Original price was: $30.00.$28.00Current price is: $28.00.
| Item NO.: | DA200B18B |
| Operating Frequency: | 200kHz ± 2% |
| Echo Sensitivity: | -80 dB Min.(0dB = 150Vp-p, 15cm, 200kHz) |
| Capacitance at 1 kHz: | 400 pF ± 20% |
| Ringing Time: | 400ms Max. |
| Typical Sensing Range: | 5 to 100cm |
| Directivity: | 20° ± 5% |
| Max.Driving Voltage: | 500 Vp-p.(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40℃ to 90℃ |
| Protection Level | IP68 |
| Housing Material: | Aluminum |
| Color: | Black/Silver |
1000 in stock
CompareDescription
| Item NO.: | DA200B18B |
| Operating Frequency: | 200kHz ± 2% |
| Echo Sensitivity: | -80 dB Min.(0dB = 150Vp-p, 15cm, 200kHz) |
| Capacitance at 1 kHz: | 400 pF ± 20% |
| Ringing Time: | 400ms Max. |
| Typical Sensing Range: | 5 to 100cm |
| Directivity: | 20° ± 5% |
| Max.Driving Voltage: | 500 Vp-p.(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40℃ to 90℃ |
| Protection Level | IP68 |
| Housing Material: | Aluminum |
| Color: | Black/Silver |
