-5%

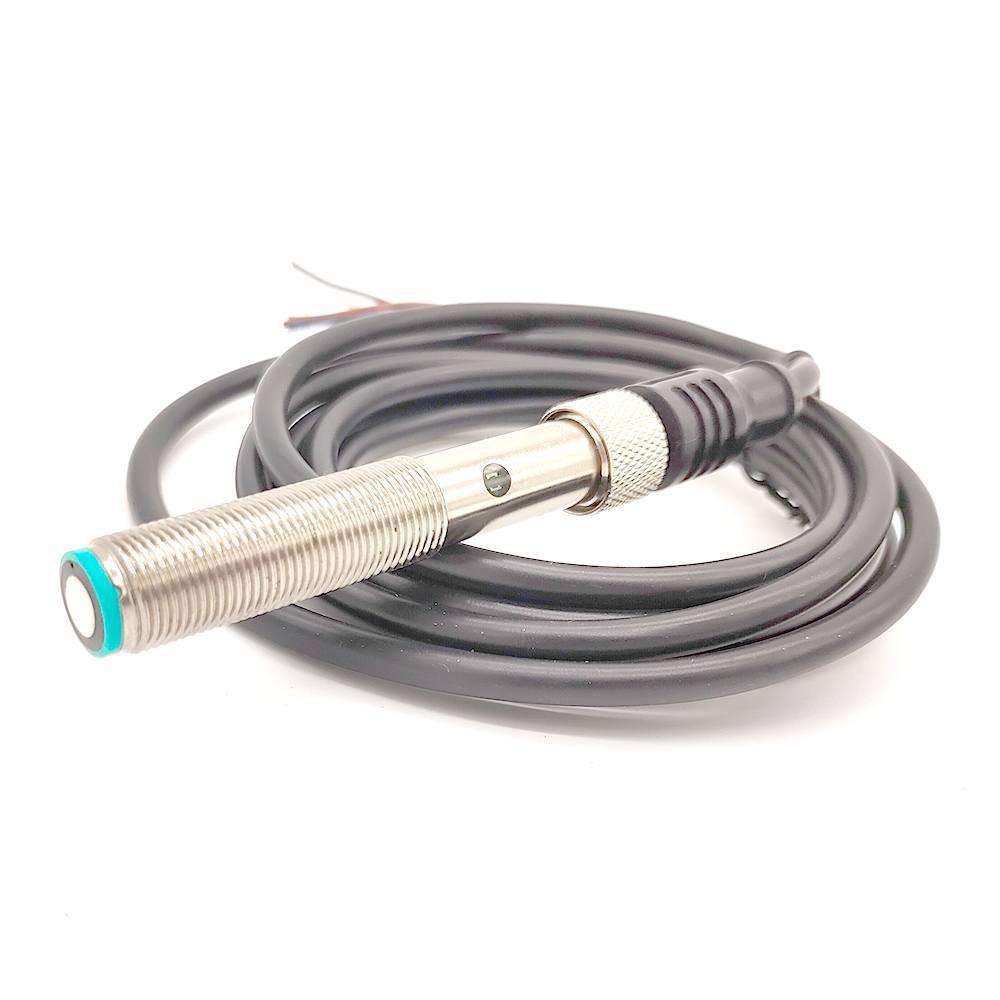

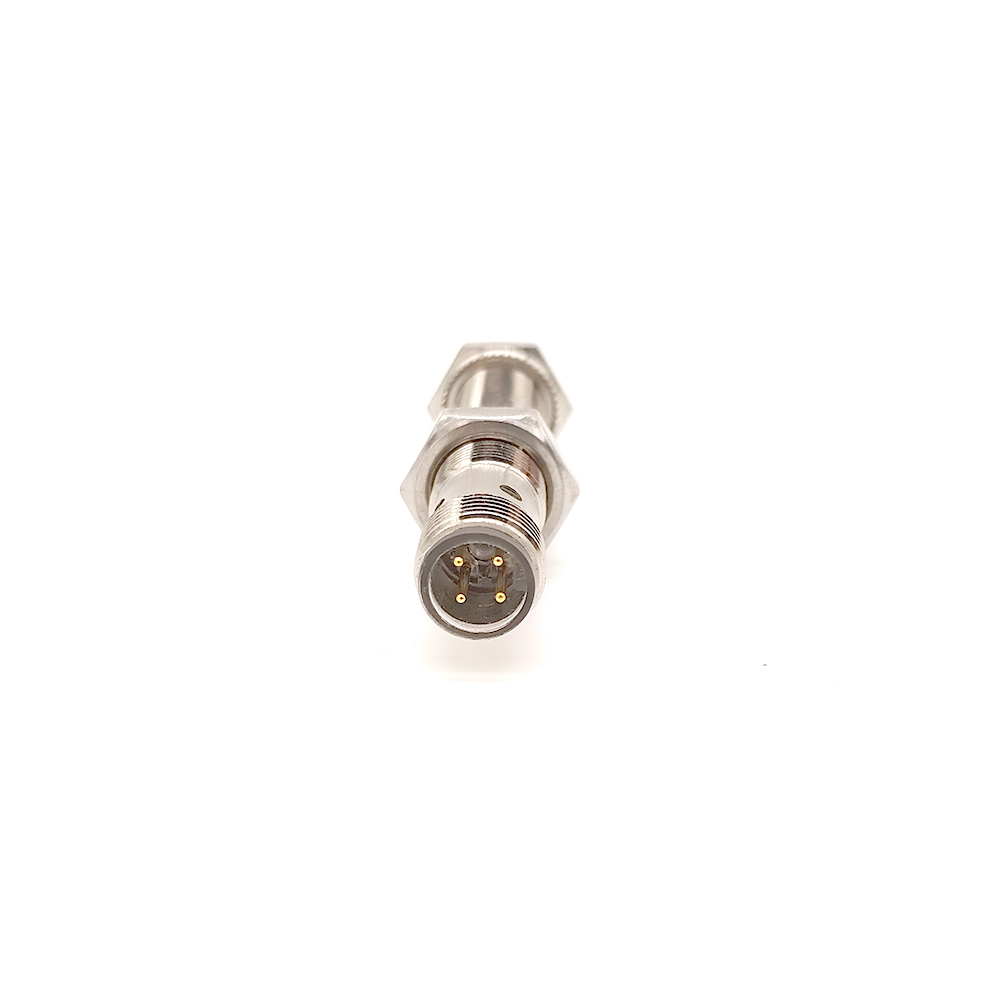

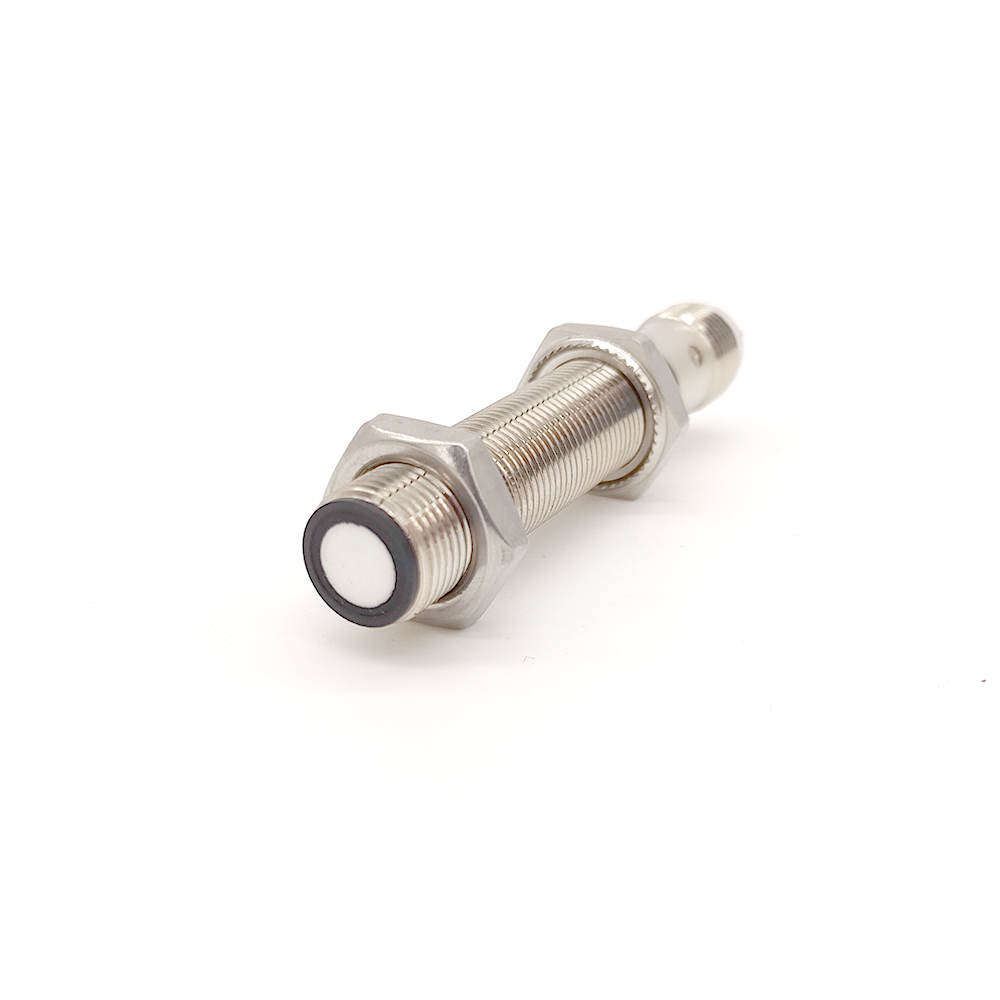

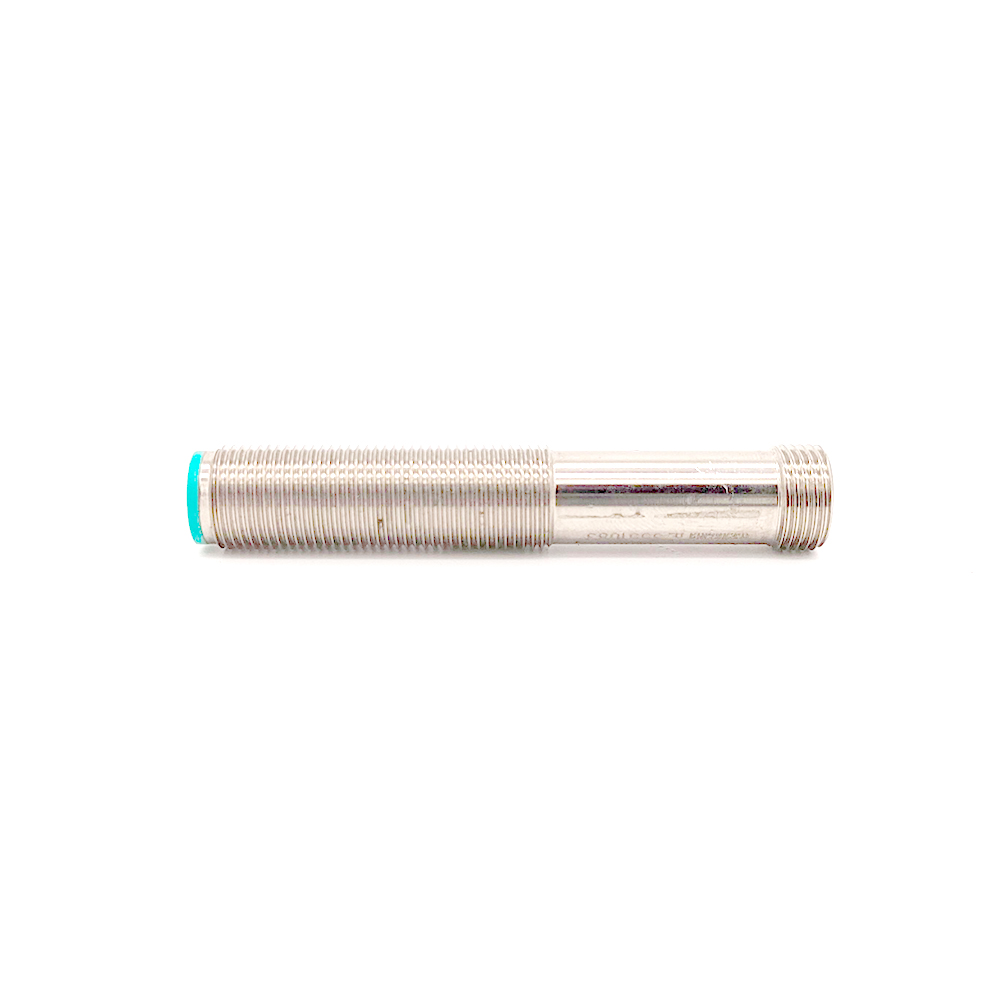

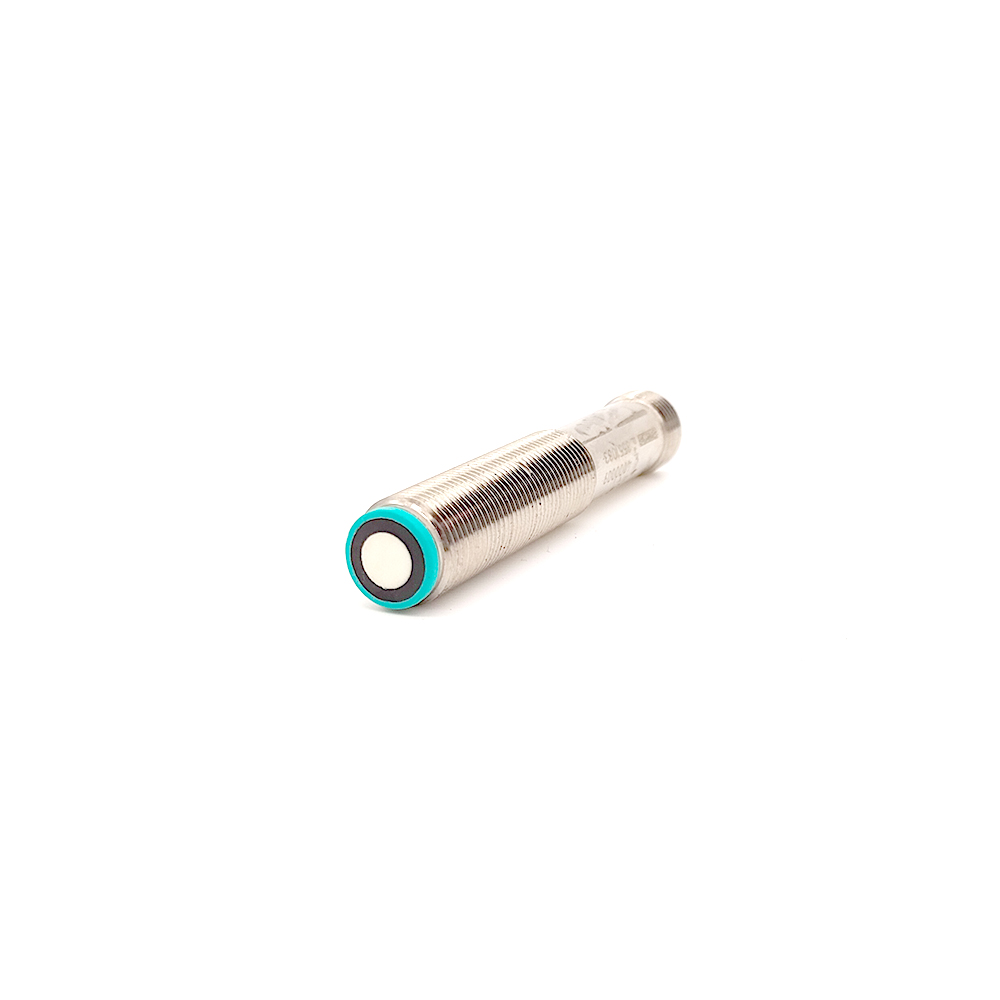

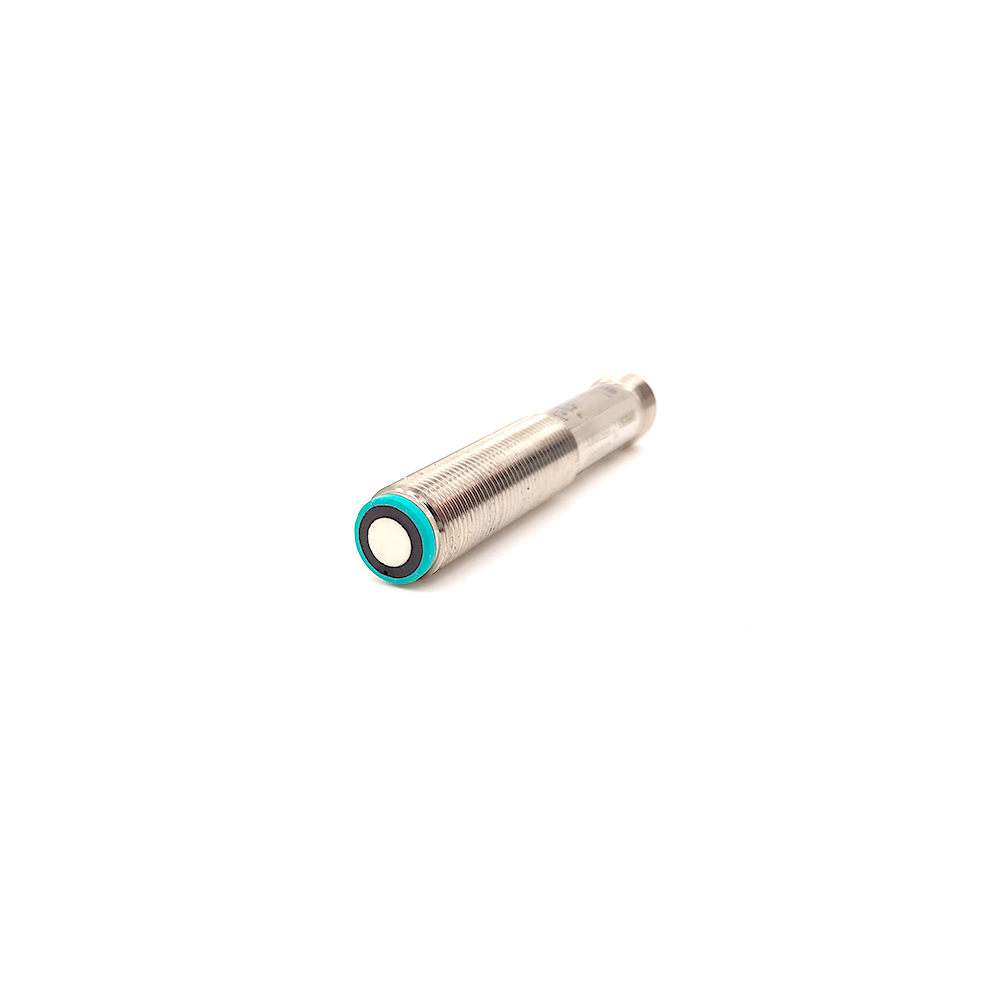

200mm Range M12 Size Ultrasonic Sensor
Original price was: $110.00.$105.00Current price is: $105.00.
| DP200-GM12-DU | 1 analog output (0~10V) |
| DP200-GM12-DI | 1 analog output (4~20mA) |
| DP200-GM12-D4 | 1 switching output (NPN NO/NC) |
| DP200-GM12-D5 | 1 switching output (PNP NO/NC) |
100 in stock
CompareDescription
| DP200-GM12-DU | 1 analog output (0~10V) |
| DP200-GM12-DI | 1 analog output (4~20mA) |
| DP200-GM12-D4 | 1 switching output (NPN NO/NC) |
| DP200-GM12-D5 | 1 switching output (PNP NO/NC) |
| Detection range | 40…200mm |
| Dead band | 0…40mm |
| Transducer frequency | 400KHz Approx.400KHz |
| Response time | 30ms Approx.30mS |
| Switching frequency | ≤13Hz |
| Rated operating current | Approx.100mA |
| Supply voltage | 10-30VDC ripple 10%. ( 0~10V type Need 15-30VDC) |
| Repetitive accuracy | ≤1% |
| Range adjustment | Adjust the farthest and closest range by adjusting the line |
| Protetion level | IP65 |
| Connection type | H4 (4-pin) M12 connecting wire/2m PVC cable |
| LED yellow light | indication of the switching state flashing:program function object detected |
| LED red light | Solid:Error flashing: program function, object not detected |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 10 × 6 cm |
