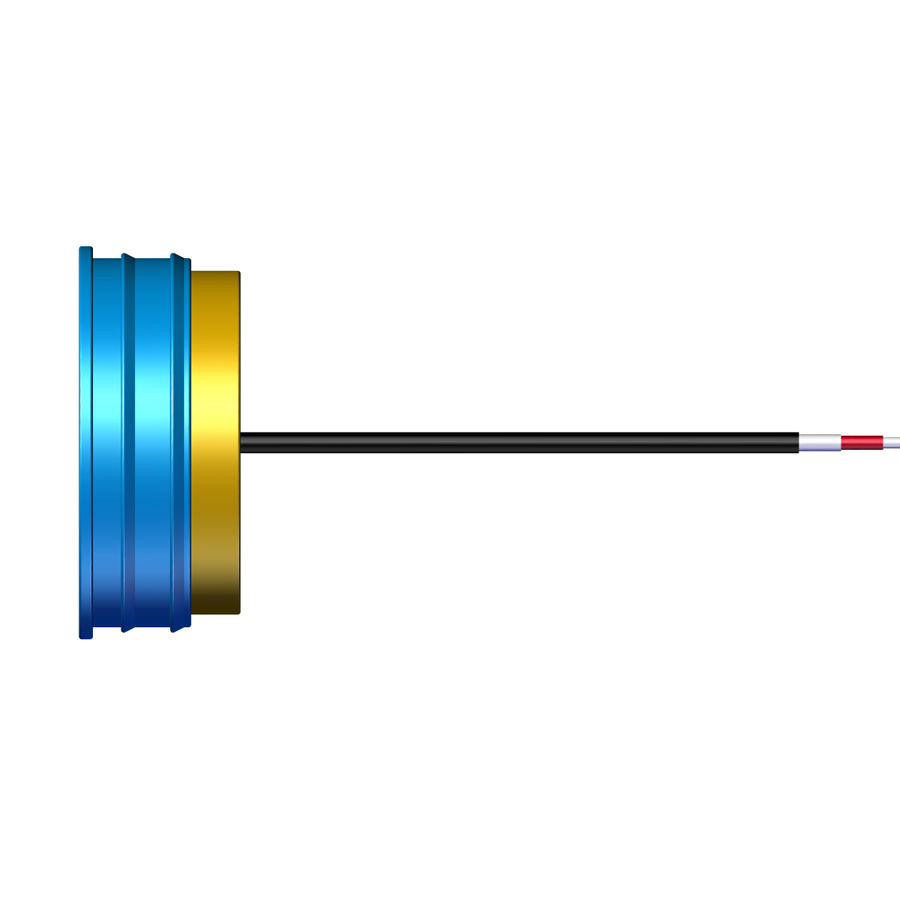

200KHZ M30 Ultrasonic Sensor
Original price was: $23.00.$20.00Current price is: $20.00.
| Item No.: | F200K-M30 |
| Operating Frequency: | 200kHz ± 2% |
| Echo Sensitivity: | -68dB Min. (0dB = 100Vpp, 10Bursts,30cm) |
| Capacitance at 1 kHz:45 | 0 pF ± 20% |
| Min.Sensing Range: | 50 mm |
| Typical Sensing Range: | 50 to 2000mm |
| Directivity: | 8° ± 2° |
| Max. Driving Voltage: | 600 Vpp,(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40 ℃ to 90℃ |
| Weight: | 16g |
| Housing Material: | Copper/Plastic |
| Acoustic Window: | Glass reinforced epoxy |
| Case Color: | Green/Black/Blue |
1000 in stock
CompareDescription
| Item No.: | F200K-M30 |
| Operating Frequency: | 200kHz ± 2% |
| Echo Sensitivity: | -68dB Min. (0dB = 100Vpp, 10Bursts,30cm) |
| Capacitance at 1 kHz: | 450 pF ± 20% |
| Min.Sensing Range: | 50 mm |
| Typical Sensing Range: | 50 to 2000mm |
| Directivity: | 8° ± 2° |
| Max. Driving Voltage: | 600 Vpp,(2% Duty Cycle Tone Burst) |
| Operating Temperature: | -40 ℃ to 90℃ |
| Weight: | 16g |
| Housing Material: | Copper/Plastic |
| Acoustic Window: | Glass reinforced epoxy |
| Case Color: | Green/Black/Blue |
Tag: Ultrasonic Sensor
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 15 × 15 × 6 cm |
